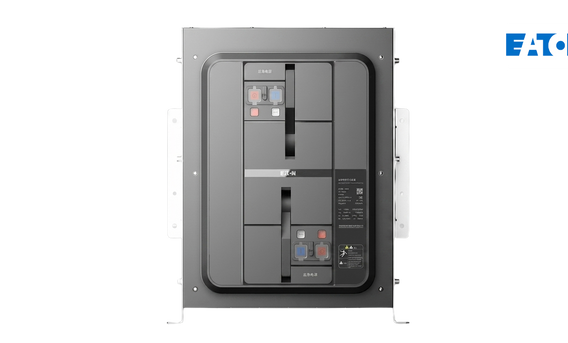

Eaton ATDH Automatic Transfer Switch (100-4000 A)
ATDH series automatic transfer switch (ATS) for utility-utility, utility-generator, and generator-generator applications, rated 100-4000 A, 415V and below, 50/60Hz. High-performance Class PC dedicated ATS with three main contact positions (I-O-II), Type B (100-800A, in-phase/parallel transfer) or Type H (400-4000A, high withstand) short-circuit withstand, and Controller type A (in-phase transfer) or B (with parallel transfer function).
OVERVIEW
ATDH series automatic transfer switch (ATS) for utility-utility, utility-generator, and generator-generator applications, rated 100-4000 A, 415V and below, 50/60Hz. High-performance Class PC dedicated ATS with three main contact positions (I-O-II), Type B (100-800A, in-phase/parallel transfer) or Type H (400-4000A, high withstand) short-circuit withstand, and Controller type A (in-phase transfer) or B (with parallel transfer function).
ATDH is a Class PC automatic transfer switch (ATS) designed specifically for emergency power systems up to 415V, 50/60Hz, with currents ranging from 100 to 4000A. It is available with Type B short-circuit withstand (Icw 50kA/1s, current 100–800A) and Type H (Icw 65kA/3s – 100 kA/0.06 s, current 400–4,000 A), with a Type A controller (in-phase transfer) or Type B controller (supports parallel transfer/closed transition).
KEY BENEFIT
Eaton ATDH ATS provides reliable automatic transfer between power sources for utility-to-utility, utility-to-generator, and generator-to-generator applications. Its Type A and Type B controllers support in-phase, delayed, and parallel transfer modes, helping minimize power interruption and improve generator coordination. The 4.3-inch LCD, event logging, RS485 Modbus-RTU, and optional Ethernet Modbus TCP/IP enable convenient monitoring, diagnostics, and power management integration.
TECHNICAL SPECIFICATION
Product Type
Automatic Transfer Switch (ATS)
Series
ATDH
Poles
3P, 4P, 3N
Related Current
100 - 4000 A
Related Voltage
AC 380V / 400V / 415V, 50/60Hz
Breaking Capacity
Icw Type B = 50 kA/1s (Icm 105kA); Icw Type H = 65kA/3s, 90kA/1s, 100kA/0.06s (Icm 220kA)
Curve Type
Frequency
50/60 Hz
Standart
GB 14048.1; GB/T 14048.11; IEC 60947-1; IEC 60947-6-1
Mounting
Fixed type; rear horizontal wiring (100-2500A) / rear vertical wiring (3200-4000A)
Degree Of Protection
Operating Temperature
'-25 to +70°C (operation); -30 to +80°C (storage)
