OVERVIEW

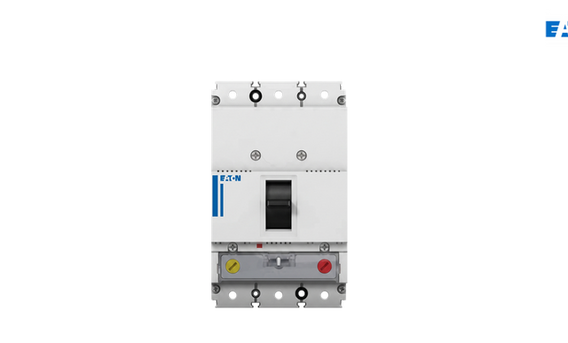

Eaton Power Defense PDC1 is a frame 160 A MCCB rated 16 to 160 A, with an adjustable thermal-magnetic trip unit for overload and short circuit, and a box-type terminal.
The Power Defense (PDC) series complies with IEC/EN 60947-2 with a maximum operating voltage of 690 V AC and Ics = 100% Icu. PDC1 is the smallest frame, available in four breaking capacity levels: 25 kA (F), 36 kA (G), 50 kA (K), and 70 kA (N) @ 415 V AC.
KEY BENEFIT
Ics = 100% Icu keeps the breaker reliable after clearing a fault; overload and short circuit settings adapt to actual load; a complete accessory ecosystem from auxiliary contact, undervoltage release, rotary handle, motor operator, up to communication modules.
TECHNICAL SPECIFICATION
Product Type
Molded Case Circuit Breaker (MCCB)
Series
PDC1
Poles
3P, 4P
Related Current
16 - 160 A
Related Voltage
415 V AC (max. 690 V AC)
Breaking Capacity
Icu = 25 kA (F), 36 kA (G), 50 kA (K), 70 kA (N) @ 415 V AC
Curve Type
Frequency
50/60 Hz
Standart
IEC/EN 60947-2
Mounting
Fixed mounting / DIN plate
Degree Of Protection
IP20
Operating Temperature
'-20 to +70 C
